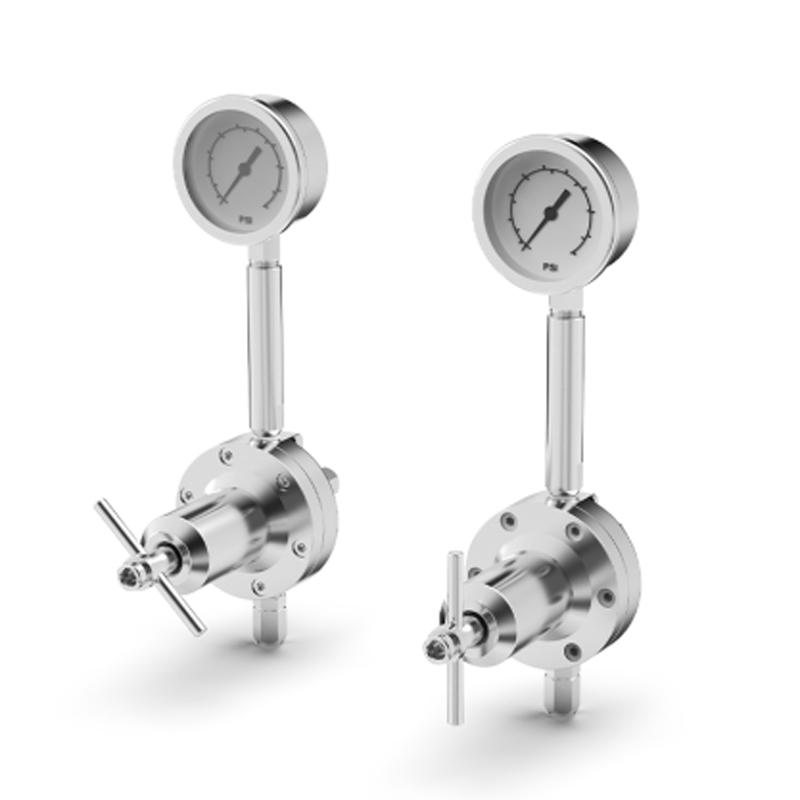

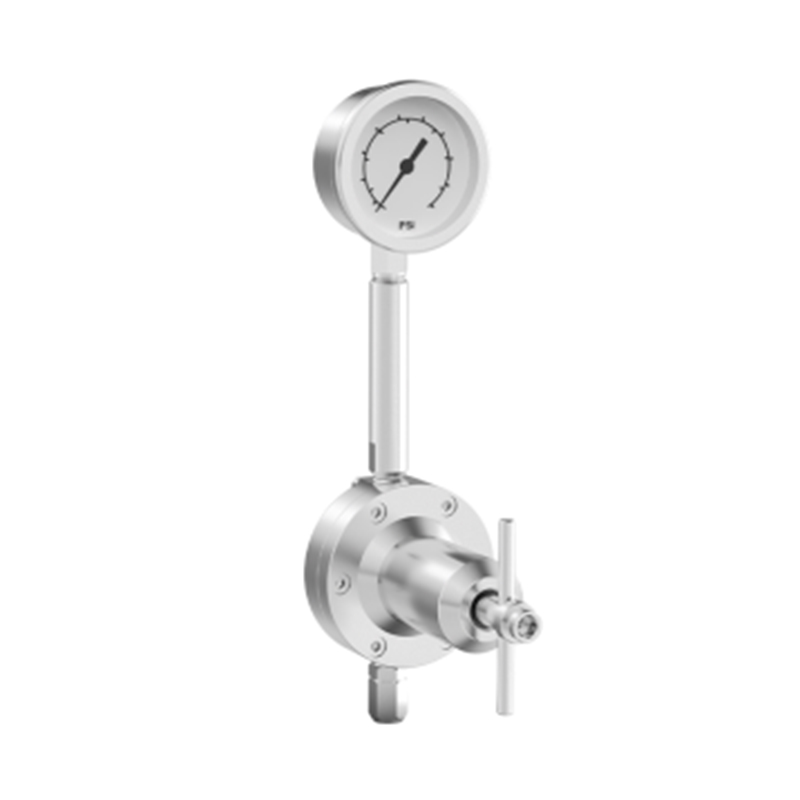

Stainless steel coating regulators are used in air spraying systems to ensure precise and reliable control of fluid pressure in spray guns, distribution valves, or atomizing nozzles. A regulator installed on the output device or pump of the circulation pipeline, used to reduce the pressure of the main pipeline to maintain the required fluid pressure of the spray gun, distribution valve or atomizing nozzle. Used to regulate the upstream pressure of coatings, solvent based coatings use FRL10Y/30Y, while water-based coatings and high solid content coatings use FRL10S/30S.
3/8 "PT (f) flexible joint suitable for multi scene and multi angle installation
Anti loss adjustment handle
Optional hose connector
Mechanical precision pressure regulation
316 stainless steel, long service life
Low shear design, full bore flow channel
Application scenarios:
Furniture, ceramic bathroom, 3C electronics, automotive parts, hardware and plastic.
FRL10Y FRL30Y
Exploded view of solvent based pressure regulator
FRL10S FRL30S
Explosion view of water-based pressure regulator
BRL1 BRL2

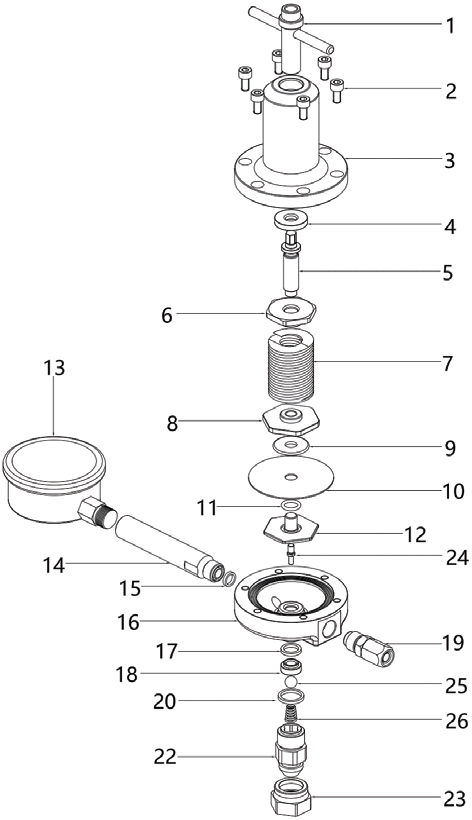

Explosion view of back pressure valve
|
Low pressure back pressure valve |
|||
|
Order material code |
13053C000037（BRL1） |
13053C000010（BRL2） |
|
|
Maximum fluid pressure |
100 psi（7 bar，0.7 MPa） |
300 psi（21 bar，2.1 MPa） |
|
|
Maximum paint flow rate |
1.5 GPM (5.5 liters/minute) @ 70cps viscosity, 100 psi |
3 GPM (11 liters/minute) @ 70cps viscosity, 200 psi |
|
|
Regulating Range |
5-100 psi（0.3-7 bar，0.03-0.7 MPa） |
5-300psi（0.3-21bar，0.03-2.1MPa） |
|
|
Immersion components |
316 stainless steel PTFE、FFKM |
||
|
Fluid inlet |
6 * 8mm hose connector (optional) |
||
|
Fluid outlet |
1/4"PT（f） |
||
|
Weight |
1.36kg |
||
|
Low pressure regulator |
||||
|
Order material code |
13053C000002 |
13053C000006 |
13053C000040 |
13053C000039 |
|
[Water based FRL10S] |
[Water based FRL30S] |
[Oil FRL10Y] |
[Oil FRL30Y] |
|
|
Maximum fluid pressure |
100psi（7bar，0.7MPa） |
300psi（21bar，2.1MPa） |
100psi（7bar，0.7MPa） |
300psi（21bar，2.1MPa） |
|
Maximum paint flow rate |
1.5GPM (5.5 liters/minute) |
3GPM (11 liters/minute) |
1.5GPM (5.5 liters/minute) |
3GPM (11 liters/minute) |
|
@70cps viscosity, 100psi |
@70cps viscosity, 200psi |
@70cps viscosity, 100psi |
@70cps viscosity, 200psi |
|
|
Regulating Range |
5–100psi（0.3–7bar， |
5–300psi（0.3–21bar， |
5–100psi（0.3–7bar， |
5–300psi（0.3–21bar， |
|
0.03–0.7MPa） |
0.03–2.1MPa） |
0.03–0.7MPa） |
0.03–2.1MPa） |
|
|
Immersion components |
316 stainless steel、PTFE、FFKM |
|||
|
Fluid inlet |
3/8 "PT (f) live connection |
|||
|
Fluid outlet |
6 * 8mm hose connector (optional) |
|||
|
Weight |
1.36kg |
|||
