CorMix
Introduction

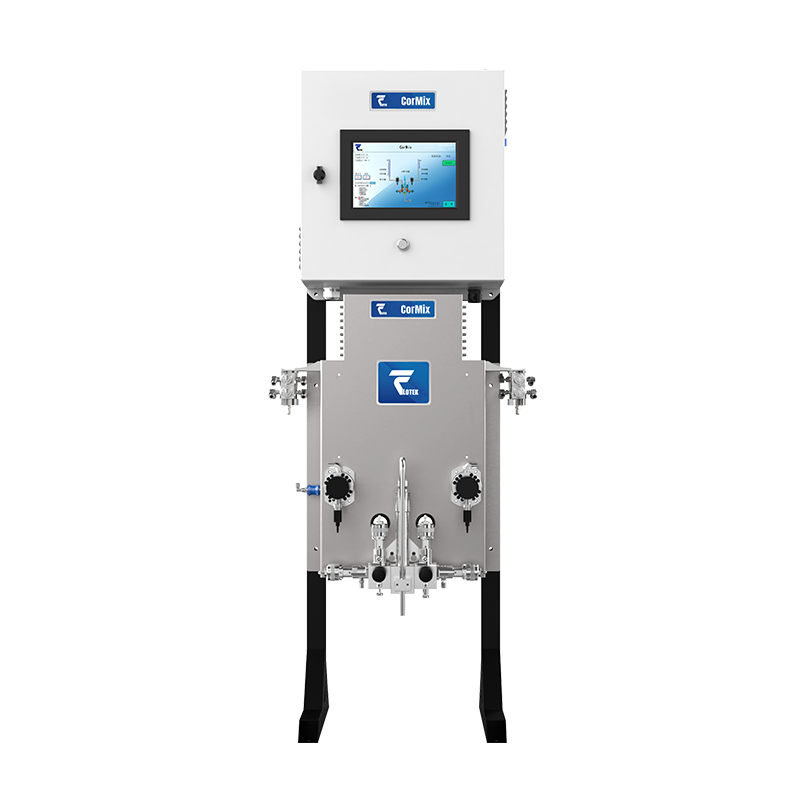

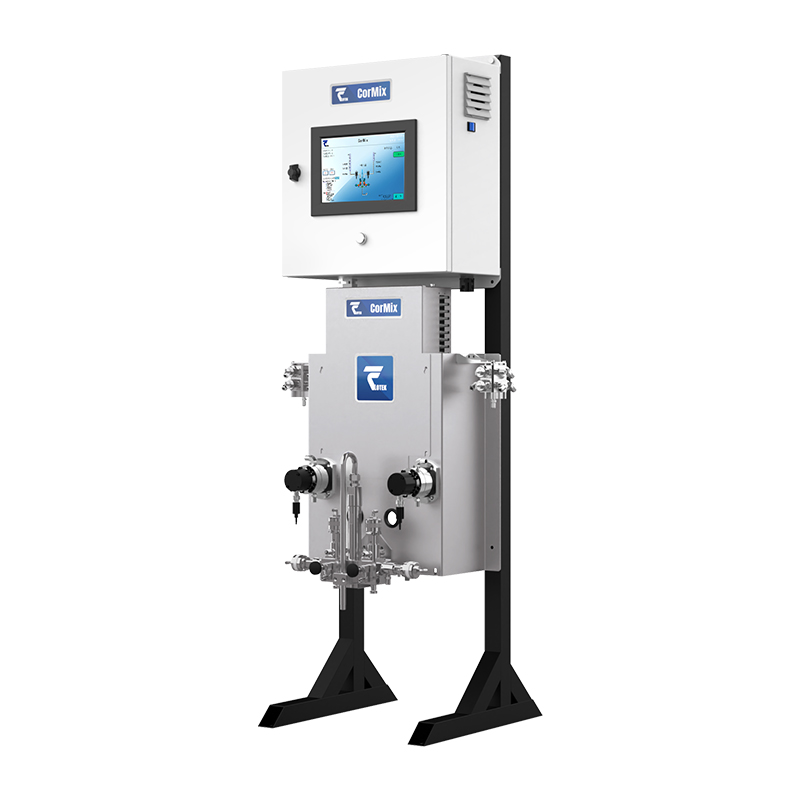

CorMix, The two-component precision electronic proportioning system is an online automatic proportioning and mixing equipment mainly used for solvent based, water-based, and acid cured two-component coatings. It has the characteristics of precise proportioning and simple operation. This system is compatible with multiple materials, providing the flexibility and efficiency required for your production line.
-High ratio, up to 50:1
-The highest proportion accuracy is ± 1%
-Multiple models, flow meters
-Through flow channel design
-Fast response speed
Description

Automatic color change and cleaning

CCV automatic color changing valve. Modular design, closely integrated with the CorMix control system, enables automatic color change and cleaning while meeting the elasticity requirements for expanding paint colors in the future.


Accurate ratio

The ratio range of CorMix coating is between 0.1:1 and 50:1, with a ratio increment of 0.1 and a ratio accuracy of ± 1%, which can meet the needs of most industrial coatings today.


Humanized control system

The control interface of CorMix is simple and fully considers the user's habits. The interface for proportioning, calibration, cleaning, measurement, color change, and fault reporting is simple and clear, and operators can proficiently operate the system after simple training.


Small footprint

The concept of integrated design and modular combination greatly improves space utilization and reduces the cost of on-site installation, layout, and transportation.


Diverse communication protocols

AccuFlo can be equipped with a variety of communication gateways and protocols: discrete I/O, Modbus, Profinet, EtherCAT.

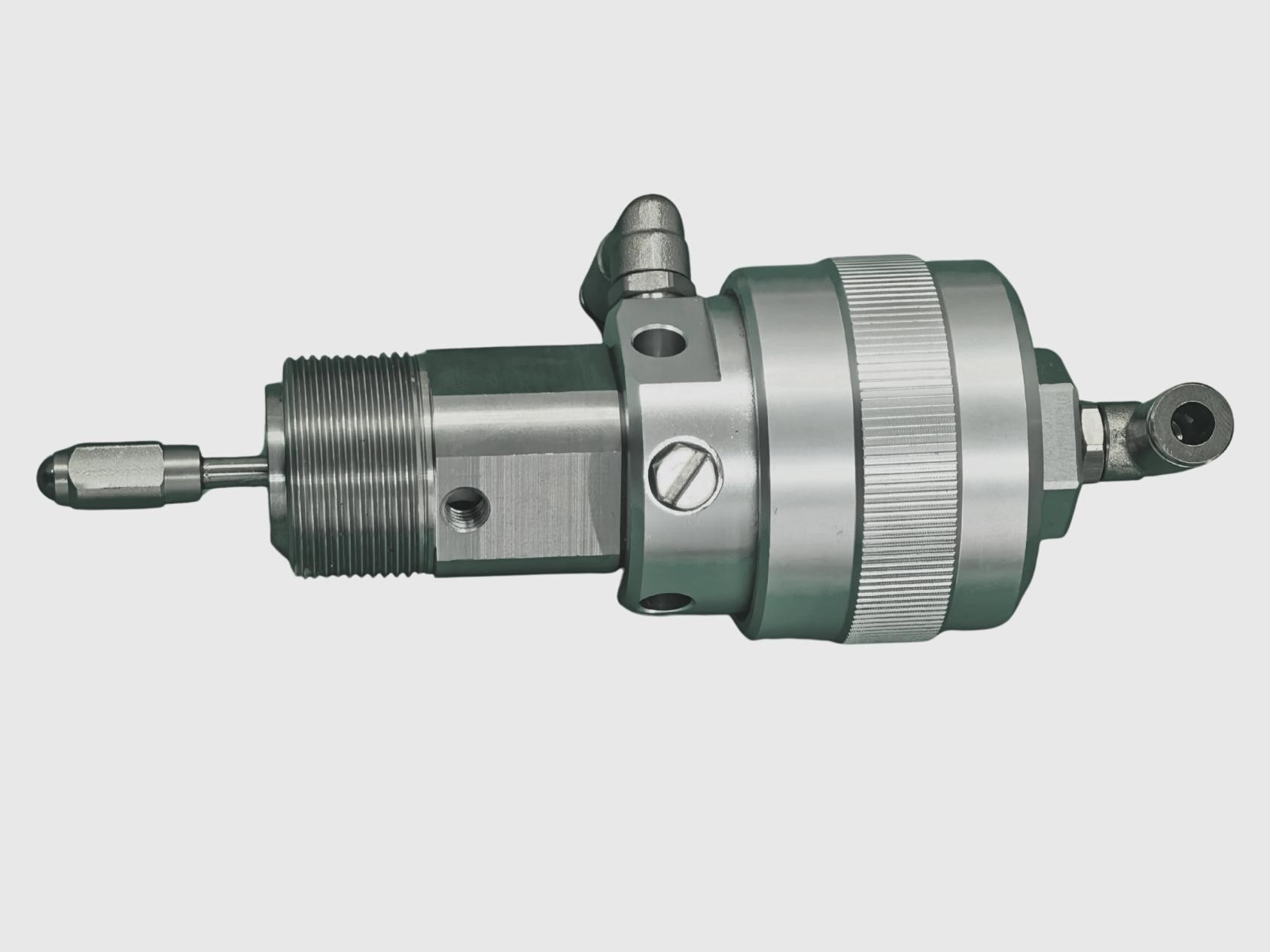

Double acting high-pressure fluid valve

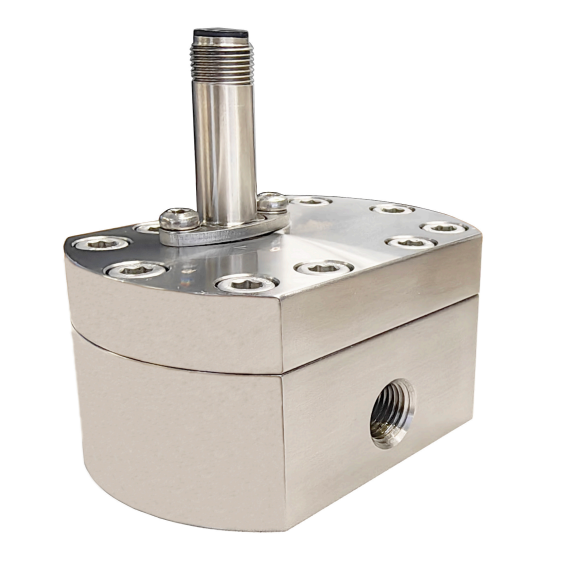

Precision gear flowmeter

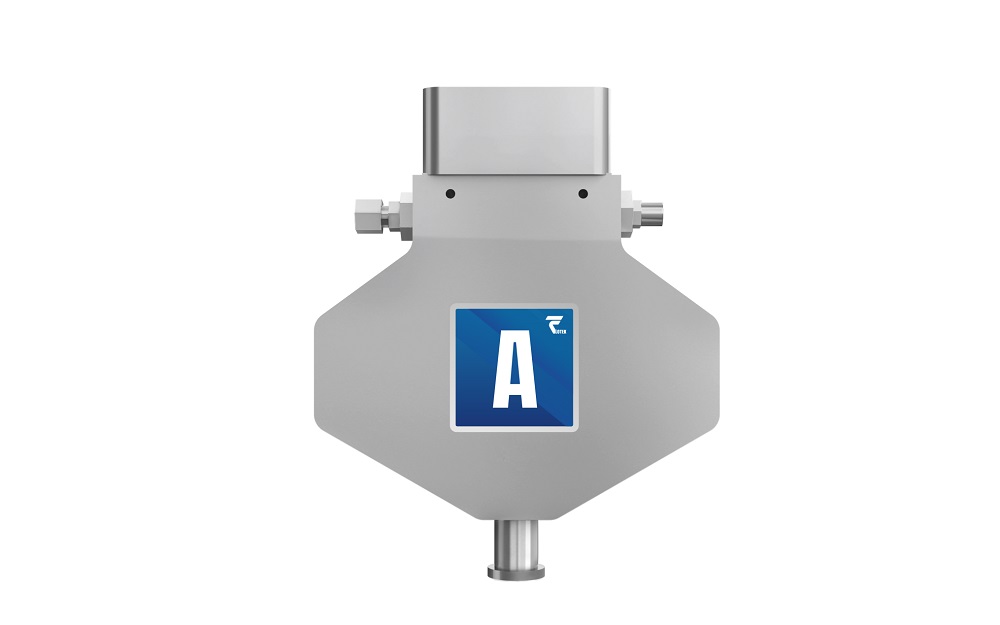

Mass flowmeter


Application scenarios

Furniture, ceramic bathroom, 3C electronics, automotive parts, hardware and plastic


Maximum paint pressure (low-pressure system)

300 psi(21 bar,2.1 MPa)

Maximum paint pressure (high-pressure system)

2900 psi(200 bar,20 MPa)

Maximum air pressure

100 psi(7 bar,0.7 MPa)

Proportion range

0.1:1 to 50:1, ±1%

Flow range

20-3800 cc/min

Paint viscosity range

20-5000 cps

Noise

<75 db(A)

Power supply

AC 220V,50-60 Hz,4A

Operation temperature

5-50°C(41-122°F)

Wall mounted split type

520mm ×560mm×1730mm (reference)

Applicable fluids

Solvent based, water-based, and acidic catalytic coatings, varnishes, etc

Immersion components

316 stainless steel FFKM、PTFE
